VS03c Results
Submitted checklist.txt and checklist.tex is also available		   [Summary | AIPS | Difmap ]
Analyst: Zhi-Qiang Shen
Date Prepared: 28-10-1999


Summary

Observation code : VS03c    AIPS Version : 15OCT98
Date of Observation : 1997/329    Difmap Version : 2.3c
Source Name : J2123+05    vsop_difmap used : Yes
Calibration Source(s) :
Ground telescopes : Mopra, ATCA, Usuda  Model Fitted to data : No
Tracking Station(s) : TZ    Image made : Yes
Correlator : Mitaka


Abstract
Fringes were clearly detected on both ground-ground and ground-space baselines.

Image was made after both the phase self-cal (for whole 6-hr track) and a global amplitude self-cal (for 2-hr data when 4 antennas including Halca were available) were applied.

Modelfitting was not tried.


AIPS Data Reduction Notes

Task
Adverbs
CL
in
SN
in
CL
out
SN
out
Comments
FITLD douvcomp=1
dotable=1




 load the uv FITS data
MSORT sort='TB'




 sort the data to 'TB' order
INDXR cparm(3)=1


1

 index uv data with 1 min CL entry interval
TACOP
1

2

 protect CL1
ACCOR solint=0



1
 correct amplitudes in cross correlation spectrum
SNSMO smotype='ampl';bparm=0.05,0;refant=0

1

2
 smooth the amplitude correction SN1
CLCAL opcode='CALI'
interpol=' '
2
2
3

 apply smoothed ACCOR solution SN2
ANTAB




 determine the Tsys and gain curve (45K for Mopra, 105K for Usuda and 45K for ATCA)
APCAL opcode=' '



3
 generate an amplitude calibration solution table
CLCAL opcode='CALI';interpol=';refant=3
3
3
4

 apply amplitude calibration solution
FRING docalib=1;refant=3;solint=4
aparm=2,0,0,0,0,1,5,0
dparm=1, 0
4


4
 run FRING with an SNR cutoff=5
CLCAL opcode='CALI';smotype='VLBI'
refant=3
4
4
5

 apply FRING solutions
TASAV




 copy all extension tables to a dummy file
SPLIT docalib=1;douvcomp=1
aparm=2,0,0,1,0
5



 make calibrated single-source data J2123+05.SPLIT
FITTP




 export each single-source file in FITS format to disk file for further imaging analysis

AIPS Input Files
ANTAB.TXT Comments
- None -

AIPS Output Files
DTSUM_0.LIS
DTSUM_1.LIS
LISTR.LIS
PRTAN.LIS
SN_ACCOR_AMP_1.PS
SN_ACCOR_AMP_2.PS
SN_APCAL_AMP_1.PS		 SN_APCAL_AMP_2.PS
SN_CALIB_DEL_1.PS
SN_CALIB_DEL_2.PS
SN_CALIB_PHA_1.PS
SN_CALIB_PHA_2.PS
SN_CALIB_RAT_1.PS
UVPLT_UV.PS		 SN_CALIB_RAT_2.PS
SN_CALIB_SNR_1.PS
SN_CALIB_SNR_2.PS
UVPLT_UVD.PS
UVPLT_UVPA.PS
IMAGE.FITS


Difmap Data Reduction Notes
Phase selfcal applied? Yes
Global amplitude selfcal (gscal) applied? Yes
Amplitude selfcal on non-global timescales used? No
Modelfit made and saved? No
Image Made and saved? Yes
Comments on Difmap processing
average data over 30 sec (uvaver 30,true)

keep non-closing data during self-cal (selfflag false,3,4)

clean and phase self-cal with uniform weighting (uvw 2,-1 ... etc)

switch to natural weighting to clean more flux (uvw 0,-1 ... etc)

try gscale (gscale true)

MOPRA 1.03 ATCA 1.04 USUDA 1.05 VSOP_TZ 0.97

MOPRA 1.11 ATCA 1.04 USUDA 1.06 VSOP_TZ 0.95

switch back to obtain a uniform weighting clean image.

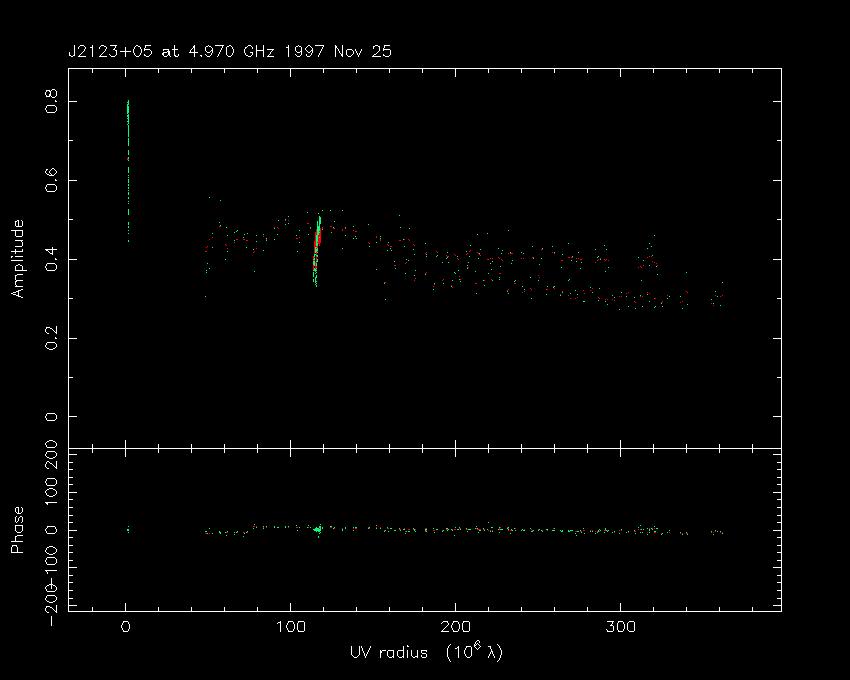

Ampl, Phase vs (u,v) Distance
PS (60 kb)
JPEG (40 kb)
 Ampl, Phase vs Time
PS (156 kb)

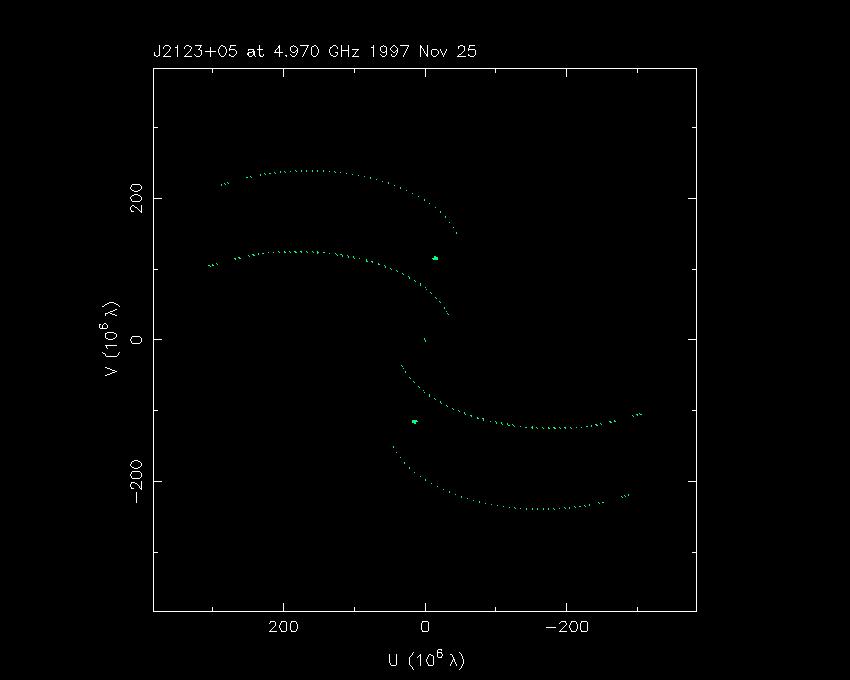

JPEG 1, 2		 (u,v) Coverage
PS (31 kb)
JPEG (25 kb)

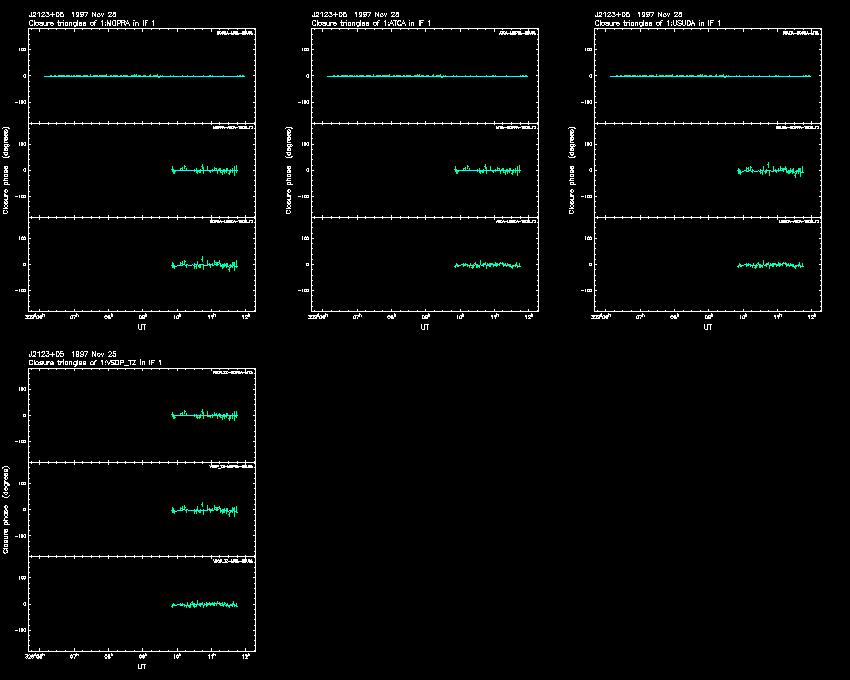

Closure Phase vs Time
PS (105 kb)

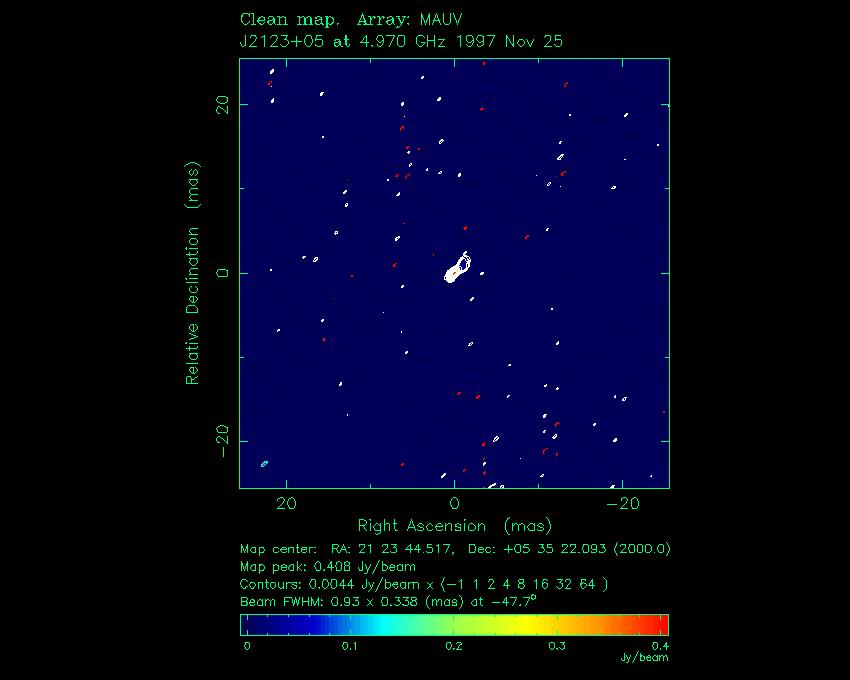

JPEG 1		 Clean Image
PS (50 kb)
JPEG (44 kb)
