VS03m Results
Submitted checklist.txt and checklist.tex is also available		   [Summary | AIPS | Difmap ]
Analyst: William Scott
Date Prepared: 16-06-1999


Summary

Observation code : VS03m    AIPS Version : 15APR99
Date of Observation : 1998/100    Difmap Version : 2.3c
Source Name : J1507-16    vsop_difmap used : Yes
Calibration Source(s) : 1334-127
Ground telescopes : Ud, Mp, Hh  Model Fitted to data : Yes
Tracking Station(s) : NZ, TZ    Image made : Yes
Correlator : Penticton


Abstract
Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
0.546532 0.201517 -159.872 0.555317 0.175050 25.9544 0.4941
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.


AIPS Data Reduction Notes

- None -

AIPS Input Files
ANTAB.TXT
INDXR.TXT		 Comments
- None -

AIPS Output Files
DTSUM_0.LIS
DTSUM_1.LIS
LISTR.LIS
PRTAN.LIS
POSSM01_AP_1.PS
POSSM02_AP_1.PS
SN_APCAL_AMP_1.PS
SN_APCAL_AMP_2.PS
SN_CALIB_DEL_1.PS
SN_CALIB_DEL_2.PS		 SN_CALIB_PHA_1.PS
SN_CALIB_PHA_2.PS
SN_CALIB_RAT_1.PS
SN_CALIB_RAT_2.PS
SN_CALIB_SNR_1.PS
SN_CALIB_SNR_2.PS
SN_FRING01_DEL_1.PS
SN_FRING01_DEL_2.PS
SN_FRING01_RAT_1.PS
SN_FRING01_RAT_2.PS		 SN_FRING01_SNR_1.PS
SN_FRING01_SNR_2.PS
UVPLT_UV.PS
UVPLT_UVD.PS
UVPLT_UVPA.PS
VPLOT_AP_1.PS
VPLOT_AP_2.PS
WEIGHTS.PS


Difmap Data Reduction Notes
Phase selfcal applied? No
Global amplitude selfcal (gscal) applied? No
Amplitude selfcal on non-global timescales used? No
Modelfit made and saved? Yes
Image Made and saved? Yes
Comments on Difmap processing

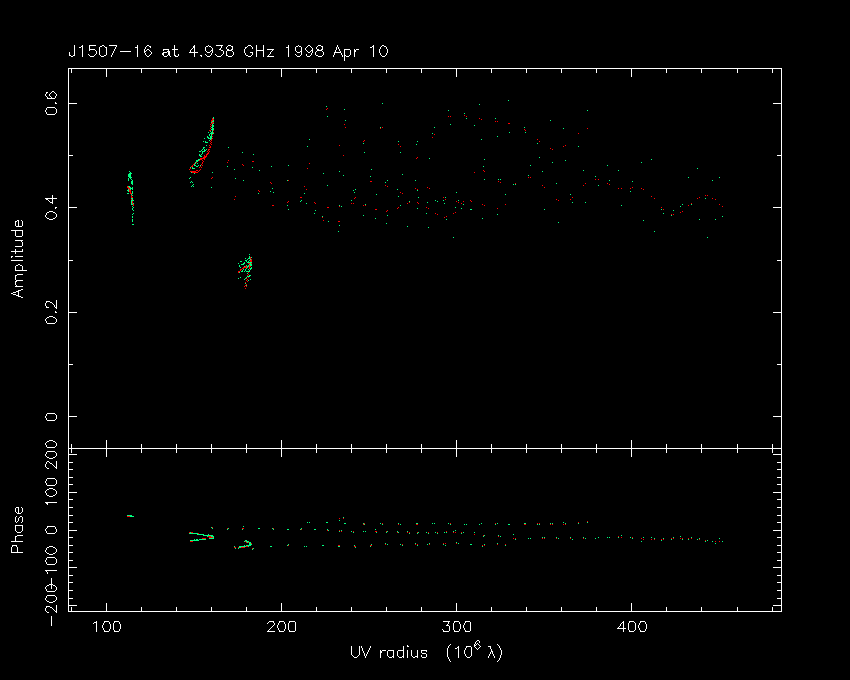

Ampl, Phase vs (u,v) Distance
PS (41 kb)
GIF (6 kb)

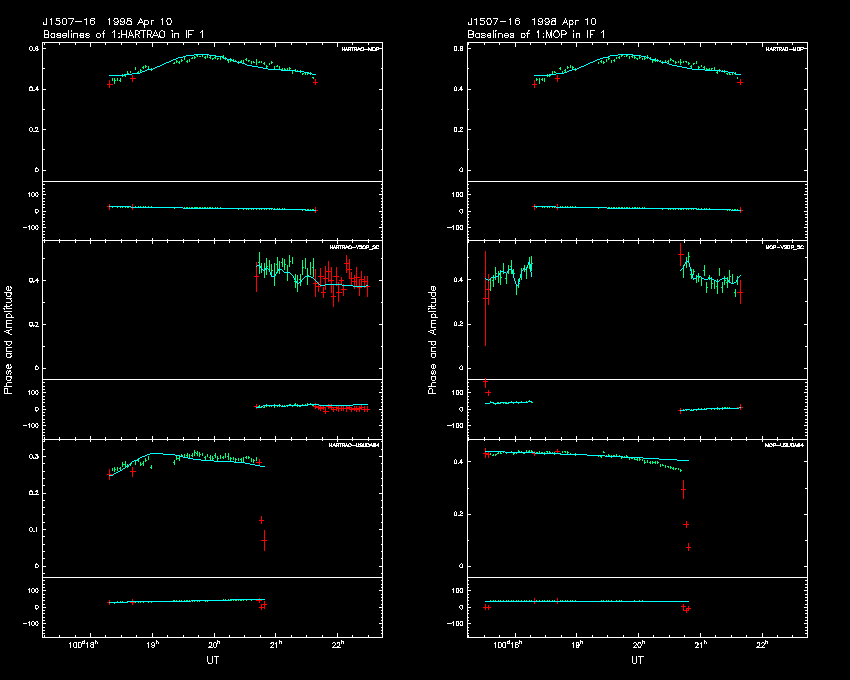

 Ampl, Phase vs Time
PS (130 kb)
GIF 1, 2		 (u,v) Coverage
PS (22 kb)
GIF (4 kb)

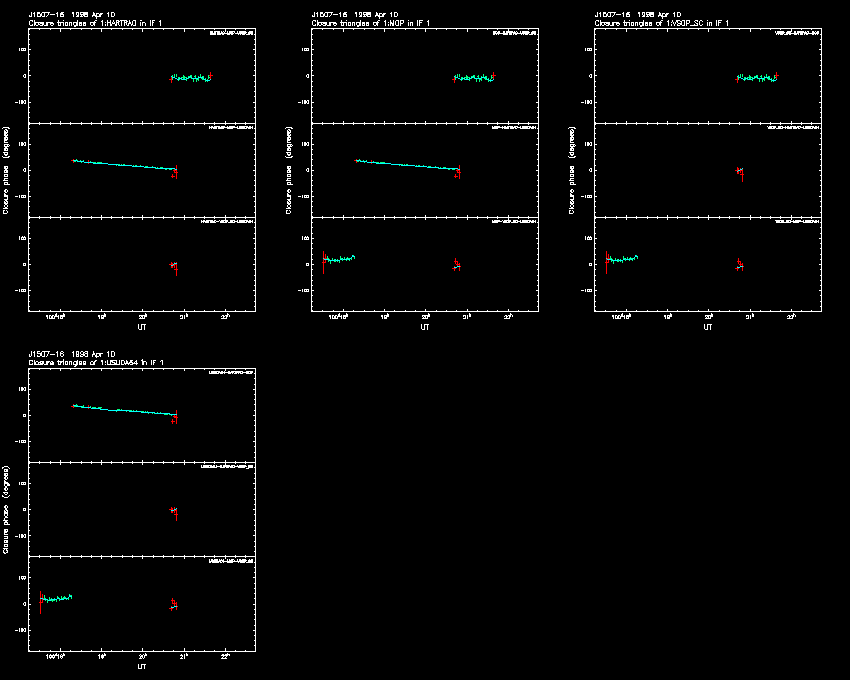

Closure Phase vs Time
PS (92 kb)

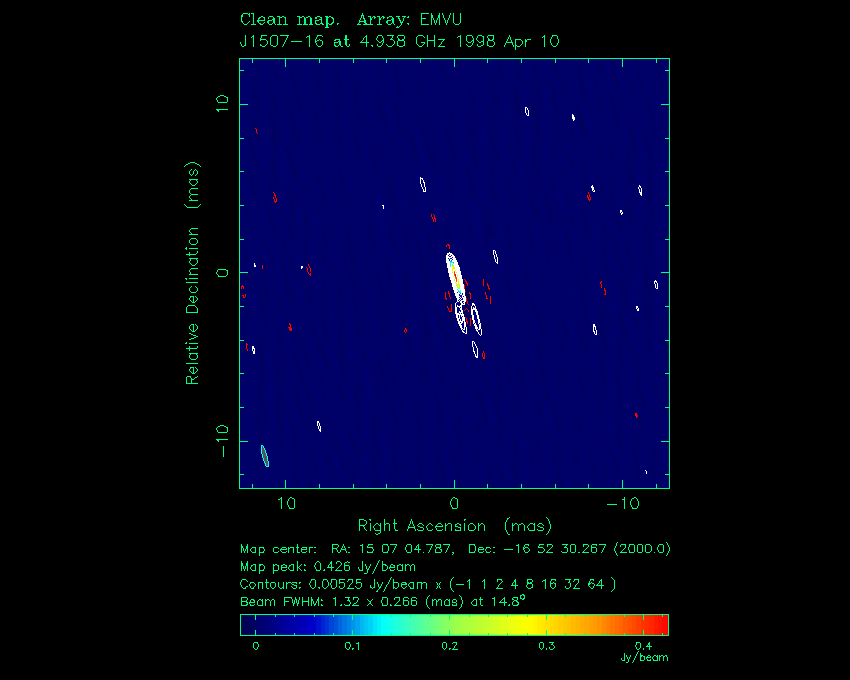

GIF 1		 Clean Image
PS (45 kb)
GIF (47 kb)
Modelfit

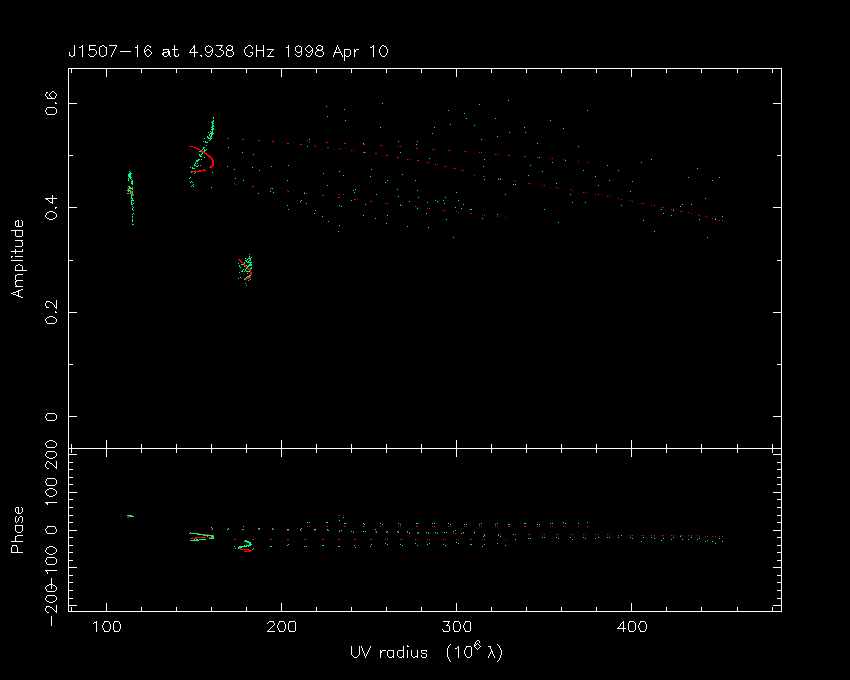

Ampl, Phase vs (u,v) Distance
PS (41 kb)
GIF (6 kb)

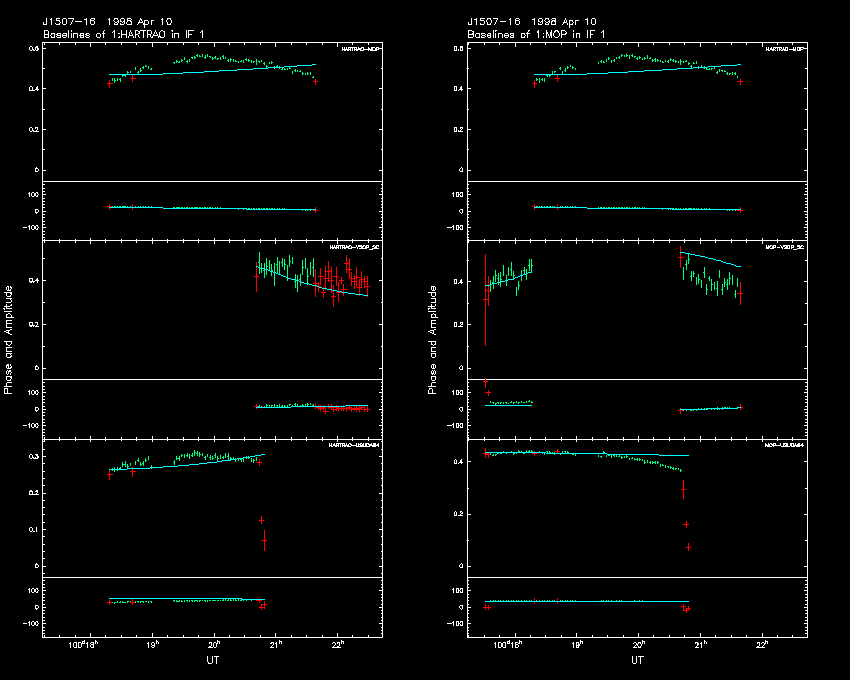

 Ampl, Phase vs Time
PS (129 kb)

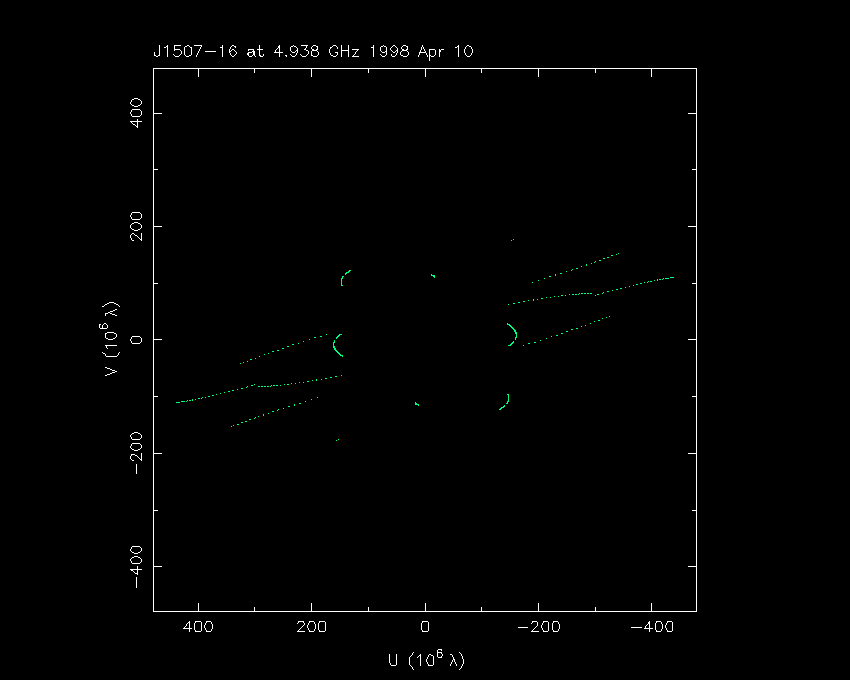

GIF 1, 2		 (u,v) Coverage
PS (22 kb)
GIF (4 kb)

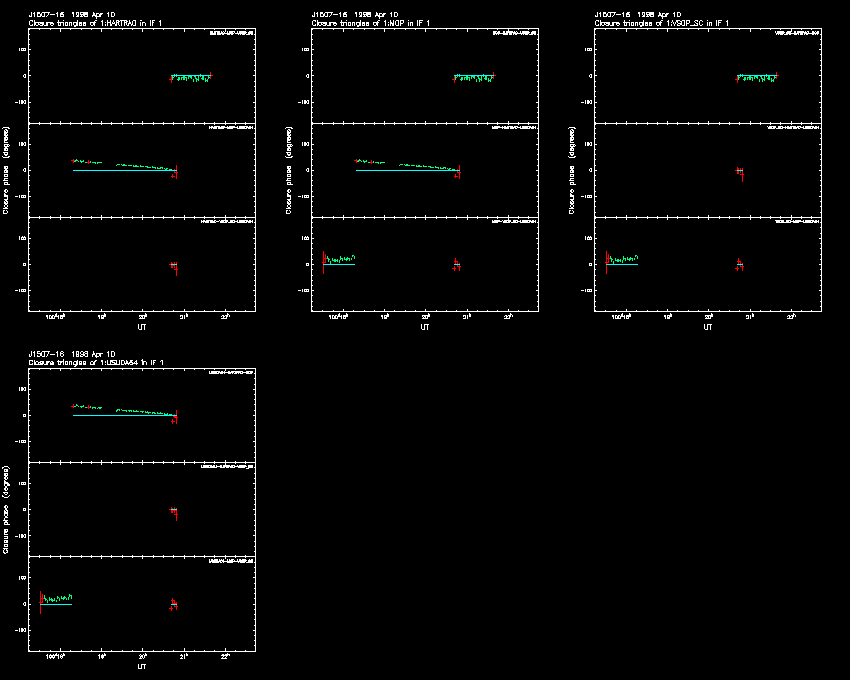

Closure Phase vs Time
PS (91 kb)

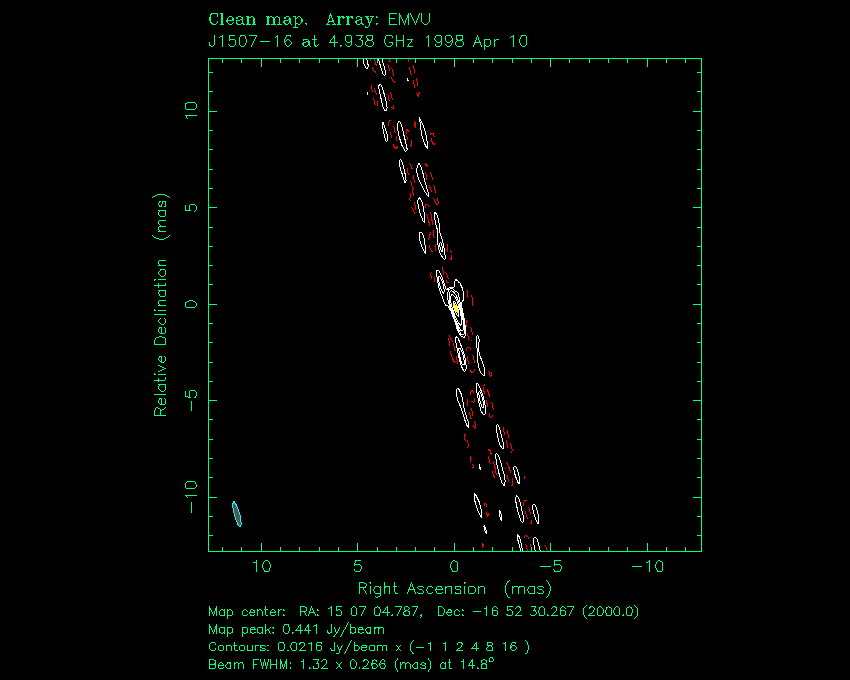

GIF 1		 Image with model components
PS (56 kb)
GIF (9 kb)

More details on the Images and Modelfits are found in this page.

Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
0.546532 0.201517 -159.872 0.555317 0.175050 25.9544 0.4941
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.
