vs04w Results
Submitted checklist.txt and checklist.tex is also available		   [Summary | AIPS | Difmap ]
Analyst: Laszlo Mosoni
Date Prepared: 06-11-2000


Summary

Observation code : vs04w    AIPS Version : 15APR99
Date of Observation : 1998/176    Difmap Version : 2.3c
Source Name : J2000-1748    vsop_difmap used : No
Calibration Source(s) :
Ground telescopes : Hobart, Shanghai  Model Fitted to data : Yes
Tracking Station(s) : TZ, NZ    Image made : Yes
Correlator : Penticton


Abstract
Two ground stations, compact core, circular Gaussian model fitted.
Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
1.91944 0.0234853 120.206 0.220079 1.00000 140.194 1.9339
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.


AIPS Data Reduction Notes

Task
Adverbs
CL
in
SN
in
CL
out
SN
out
Comments
FITLD





MSORT




 uv file received was already sorted in TB order
FIXWT bif = 1
bchan = 100
xinc = 10
detime = -1





INDXR cparm = 0, 0, 0.5, 0


1

 Input scan break taken from PI letter
TABED inext = 'an'
inver = 1
outver = 1
optyp = 'repl'
aparm = 5, 0, 0, 6, 0
bcount = 1
ecount = 1
keyvalue = 0




 fix incorrect antenna type (MNTSTA: altaz ->0) in column 5, row 1 of AN table for HOBART
TABED same as above, except:
bcount = 2
ecount = 2
keyvalue = 2, 0 (?)




 fix incorrect antenna type (MNTSTA: orbiter->2) in column 5, row 2 of AN table for VSOP_SC
ANTAB




 gain curve informatin from VSOP calibration web page. Nominal Tsys used for Hobart and HALCA. Slight difference between HALCA IF1 and IF2 (96 & 102 K) based on earlier experience.
APCAL



1

CLCAL opcode = 'cali'
interpol = '2pt'
REFANT = 0
1
1
2

 Amplitude calibration solutions applied
TACOP
2

3


CLCOR opcode = 'SBDL'
antenn = 1,0
gainver = 3
clcorprm = -2400, -2400




 Delays from DQA1 plots for Hobart
FRING docalib = 1
gainuse = 3
flagver = 1
refant = 1
solint = 5
aparm = 2, 0, 0, 0, 2, 1,
   3, 0, 1, 0
dparm = 3, 400, 100, 0
3


2
 Delay and rate search windows 400 ns and 100 mHz, SNR treshhold 3. 556 good solutions.
TACOP

2

3
 For clipping in SNSMO
SNSMO timer = 0 13 0 0 0 16 0 0
interpol = 'MWF'
doblank = 1
smotype = 'DELA'
cparm(5) = 30
cparm(10) = 35

3

4
 Data editing for HALCA
SNSMO same as above, except:
bparm(5) = 0.2

4

5
 Interpolation
CLCAL opcode = 'cali'
interpol = 'ambg'
3
5
4

 Fringe-fit solution applied.
TACOP
4

5


TACOP
5

6

 (mistake)
CLCOR opcode = 'gain'
antenna = 0
clcorprm = 0.906, 0
6

6

 Gain correction for Penticton data correlated before 14 Feb 1999, (14 Aug 1998).
TACOP
6

7

 Prepare a copy before amplitude scaling.
CLCOR opcode = 'gain'
antenna = 1, 0
clcorprm = 0.625, 0
7

7

 Hobart gain correction after investigating data in Difmap.
CLCOR opcode = 'gain'
antenna = 3, 0
clcorprm = 1.6, 0
7

7

 Seshan gain correction after investigating data in Difmap.
SPLIT aparm = 2, 0.7246, 0, 1, 0
bchan = 20
7



 Create single-source file, IFs not averaged, aparm(2) from DTSUM
FITTP




 Data written out for analysis in Difmap.

AIPS Input Files
ANTAB.TXT Comments
Measured Tsys for Seshan, nominal values for HALCA and Hobart.

AIPS Output Files
DTSUM_0.LIS
DTSUM_1.LIS
LISTR.LIS
PRTAN.LIS
POSSM01_AP_1.PS
POSSM01_AP_2.PS
POSSM02_AP_1.PS
POSSM02_AP_2.PS		 SN_APCAL_AMP_1.PS
SN_APCAL_AMP_2.PS
SN_CALIB_DEL_1.PS
SN_CALIB_DEL_2.PS
SN_CALIB_PHA_1.PS
SN_CALIB_PHA_2.PS
SN_CALIB_RAT_1.PS
SN_CALIB_RAT_2.PS		 SN_CALIB_SNR_1.PS
SN_CALIB_SNR_2.PS
UVPLT_UV.PS
UVPLT_UVD.PS
UVPLT_UVPA.PS


Difmap Data Reduction Notes
Phase selfcal applied? Yes
Global amplitude selfcal (gscal) applied? No
Amplitude selfcal on non-global timescales used? No
Modelfit made and saved? Yes
Image Made and saved? Yes
Comments on Difmap processing
Amplitude scaling was based on pre-launch survey and uv-crossing points. Clean component model was obtained after a few iterations of clean/phase-only selfcal. Single circular Gaussian component fits the uv data perfectly.

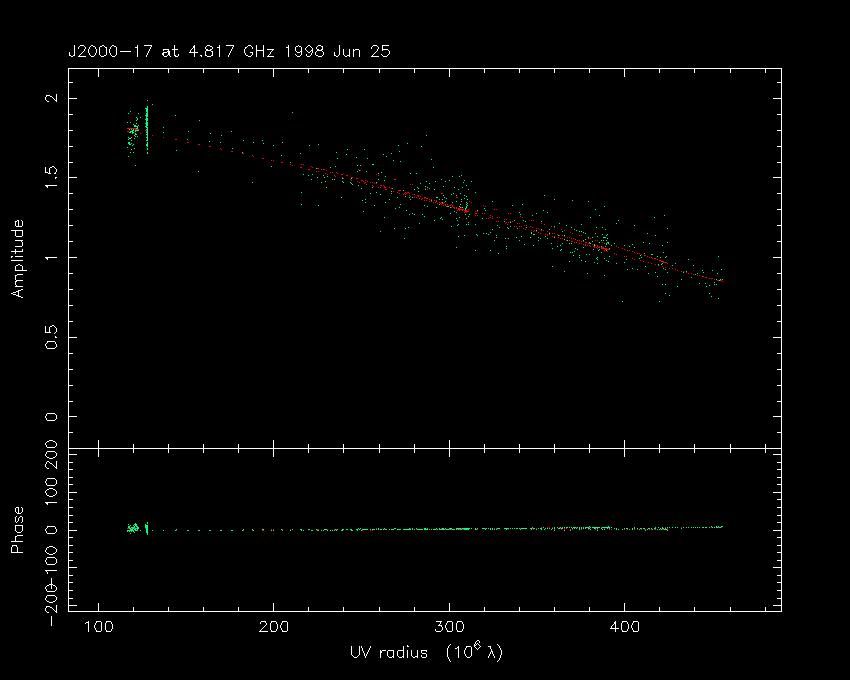

Ampl, Phase vs (u,v) Distance
PS (51 kb)
JPEG (43 kb)
 Ampl, Phase vs Time
PS (123 kb)

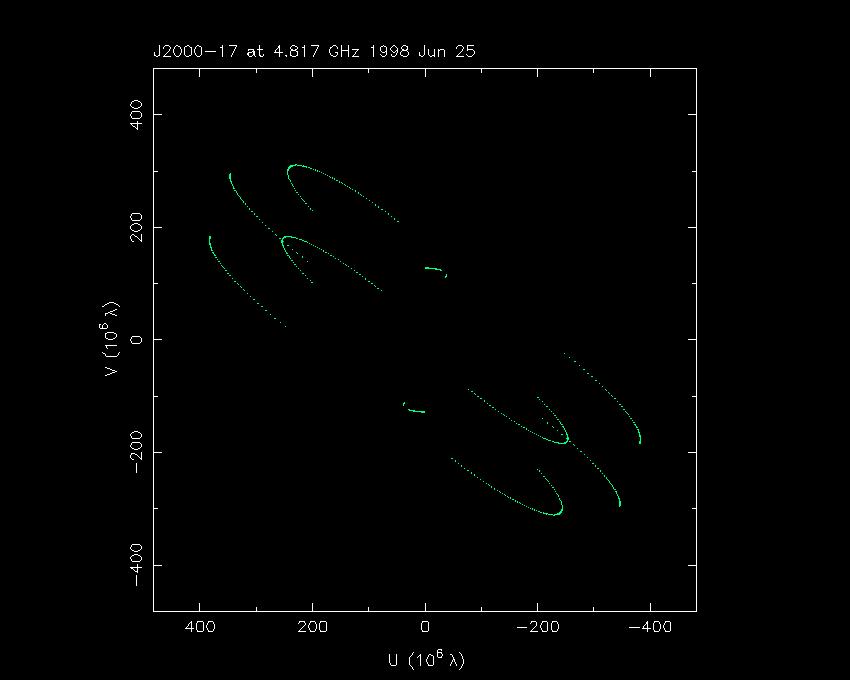

JPEG 1, 2		 (u,v) Coverage
PS (26 kb)
JPEG (28 kb)

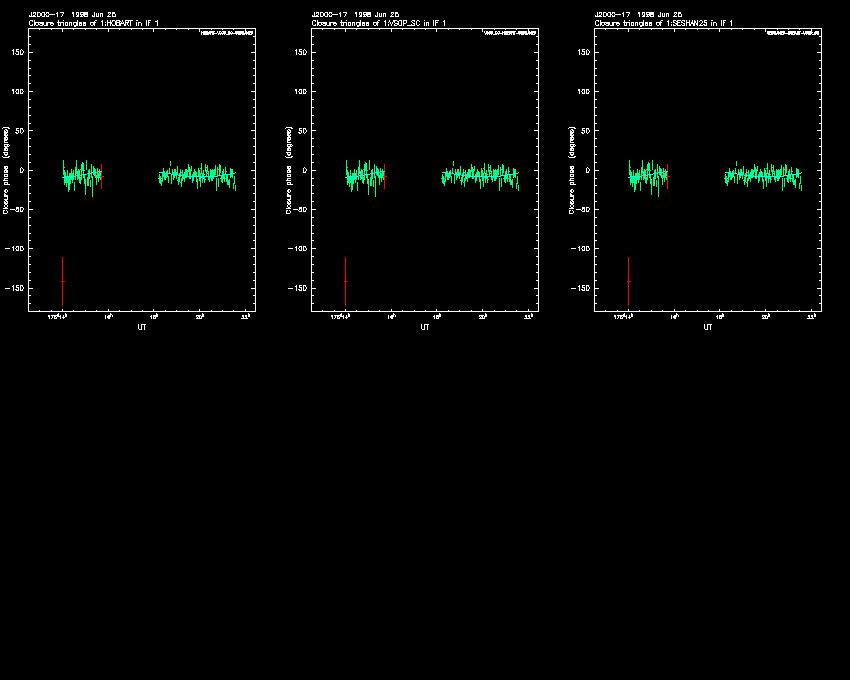

Closure Phase vs Time
PS (52 kb)

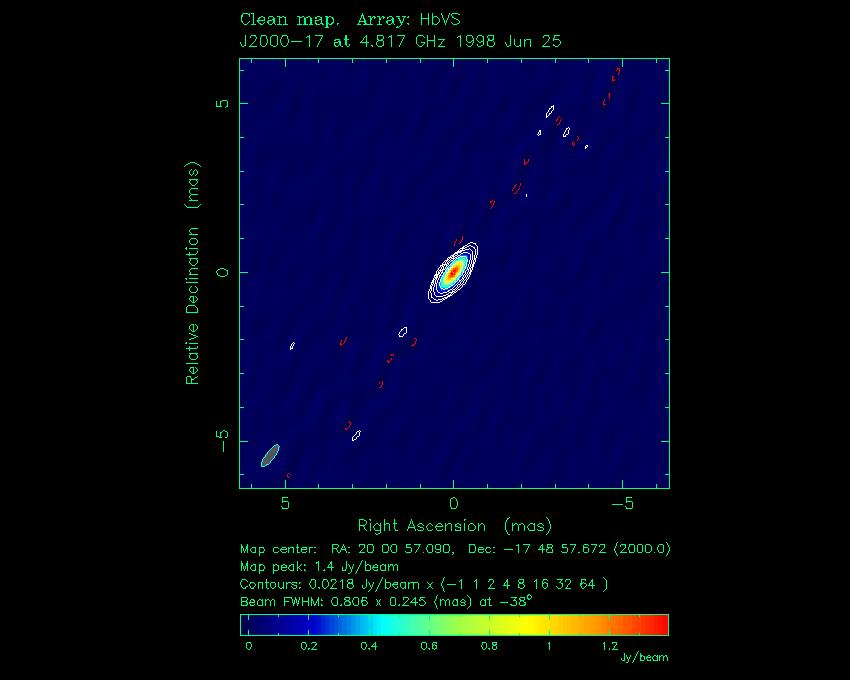

JPEG 1		 Clean Image
PS (34 kb)
JPEG (43 kb)
Modelfit
Ampl, Phase vs (u,v) Distance
PS (51 kb)
JPEG (43 kb)
 Ampl, Phase vs Time
PS (123 kb)
JPEG 1, 2		 (u,v) Coverage
PS (26 kb)
JPEG (28 kb)

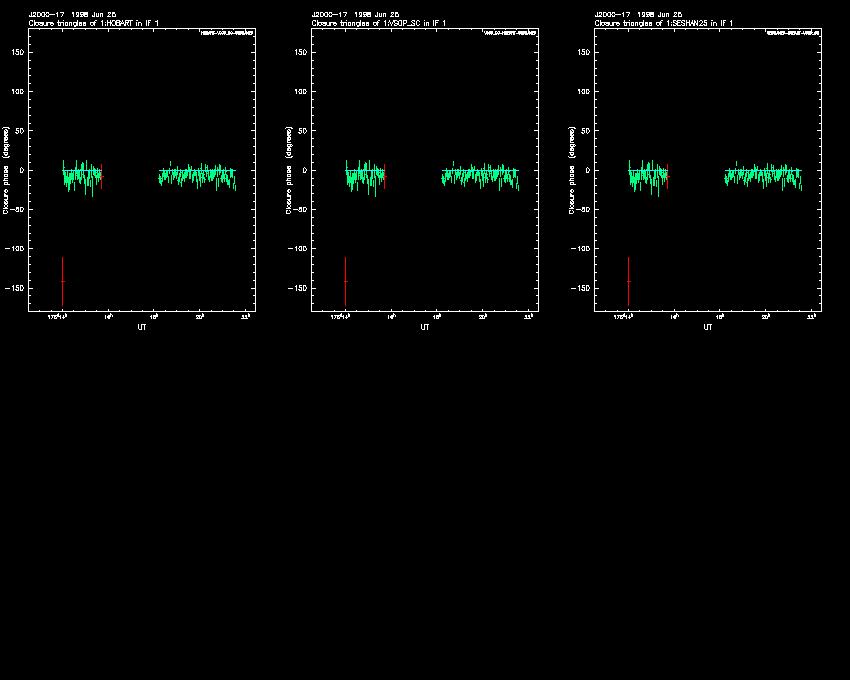

Closure Phase vs Time
PS (51 kb)

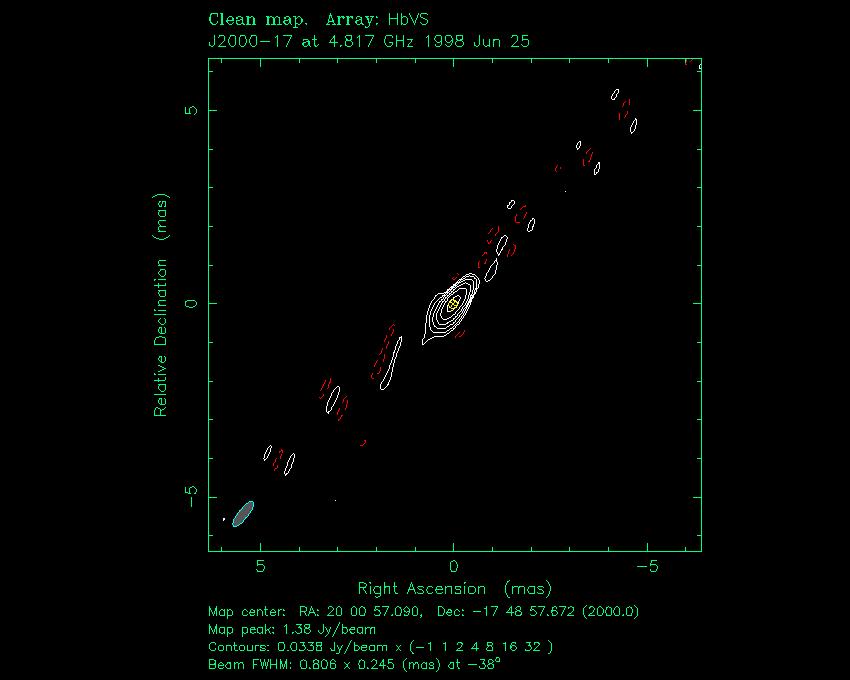

JPEG 1		 Image with model components
PS (37 kb)
JPEG (40 kb)

More details on the Images and Modelfits are found in this page.

Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
1.91944 0.0234853 120.206 0.220079 1.00000 140.194 1.9339
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.
