VS06K Results
Submitted checklist.txt and checklist.tex is also available		   [Summary | AIPS | Difmap ]
Analyst: Richard Dodson
Date Prepared: 10-06-2004


Summary

Observation code : VS06K    AIPS Version : 31DEC03
Date of Observation : 2000/345    Difmap Version : 2.4a
Source Name : J2358-10    vsop_difmap used : No
Calibration Source(s) : J2148+06, J0050-09
Ground telescopes : AT, HH, HO, NO,  Model Fitted to data : Yes
Tracking Station(s) : RZ    Image made : Yes
Correlator : Penticton


Abstract
Weak space fringes mop-hobart is low, based on J2148+06: Baseline error?

Only 32 channels in the uv data. With delays of ~ 300 nsec this should just be okay... however I do have trouble making sense of the data.
Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
0.0585032 0.189571 -16.8622 0.00000 1.00000 0.00000 0.0000
0.307514 0.370494 105.446 1.21792 1.00000 180.000 0.0101
0.0588301 0.337379 -179.737 0.00000 1.00000 0.00000 0.0000
0.0255124 0.364502 3.43884 0.00000 1.00000 0.00000 0.0000
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.


AIPS Data Reduction Notes

Task
Adverbs
CL
in
SN
in
CL
out
SN
out
Comments
FITLD clint = 0.25
digicor = -1
delcorr = -1





INDXR cparm = 0, 0, 0.25;


1


ANTAB infile='antab.txt'





APCAL



1

CLCAL refant=1;
1
1
2

 Amplitude calibration solutions applied.
CLCOR opcode 'gain';antenna 0;clcorprm
   1.063,0
3

3


FRING docal -1; dparm 2,0,0,0.5,0;aparm(7)=0.1;solint
   5,10,15



3,4,5
 delay at Noto and VSOP ~ 400nsec, VSOP rate is high
SNEDT

7

8

CLCAL refant=1;intp=2 0;inter
   'poly'
2
8
3

 rough fit
FRING docal 1; dparm 2,50,60,0.5,0;



9
 Narrow fine search
SNEDT

9

10

CLCAL refant=1;intp 'ambg'/'cube'
3
10
4,5

 Still pretty wobbly.
SPLIT aparm(1)=2 0;
5



 Av within IF
FITTP




 Data written out for analysis in Difmap

AIPS Input Files
ANTAB.TXT Comments
- None -

AIPS Output Files
DTSUM_0.LIS
DTSUM_1.LIS
LISTR.LIS
PRTAN.LIS
DELAY_SOLUTION.PS
POSSM.PS
SN_APCAL_AMP_1.PS
SN_APCAL_AMP_2.PS
SN_CALIB_DEL_1.PS		 SN_CALIB_DEL_2.PS
SN_CALIB_PHA_1.PS
SN_CALIB_PHA_2.PS
SN_CALIB_RAT_1.PS
SN_CALIB_RAT_2.PS
SN_CALIB_SNR_1.PS
SN_CALIB_SNR_2.PS
SN_FRING01_DEL_1.PS
SN_FRING01_DEL_2.PS		 SN_FRING01_RAT_1.PS
SN_FRING01_RAT_2.PS
SN_FRING01_SNR_1.PS
SN_FRING01_SNR_2.PS
UVPLT_UV.PS
UVPLT_UVD.PS
UVPLT_UVPA.PS
VPLOT.PS


Difmap Data Reduction Notes
Phase selfcal applied? Yes
Global amplitude selfcal (gscal) applied? No
Amplitude selfcal on non-global timescales used? No
Modelfit made and saved? Yes
Image Made and saved? Yes
Comments on Difmap processing
Only 32 channels, but with the delays found there would be signal loss. Should be recorrelated.

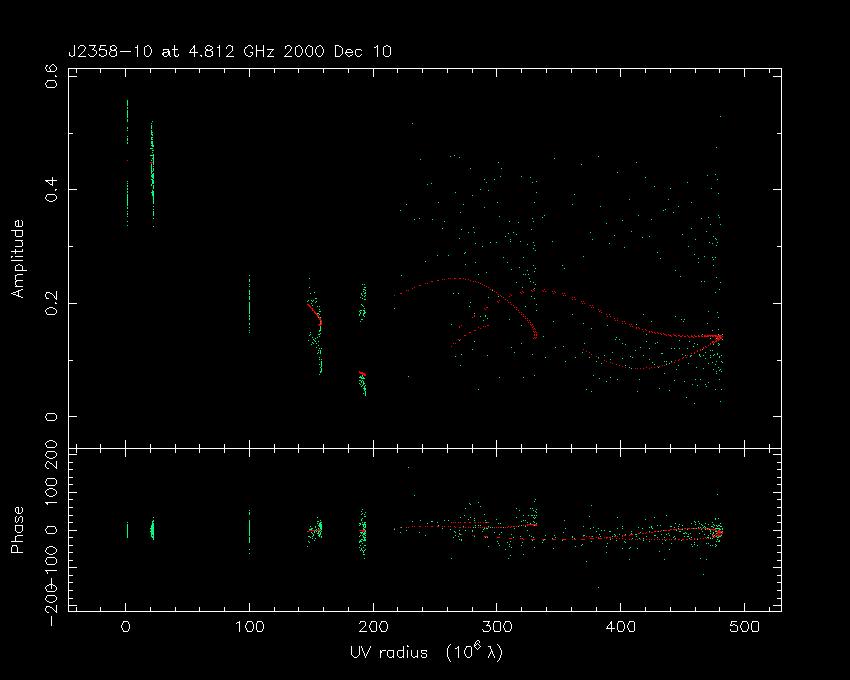

Ampl, Phase vs (u,v) Distance
PS (59 kb)
JPEG (48 kb)
 Ampl, Phase vs Time
PS (275 kb)

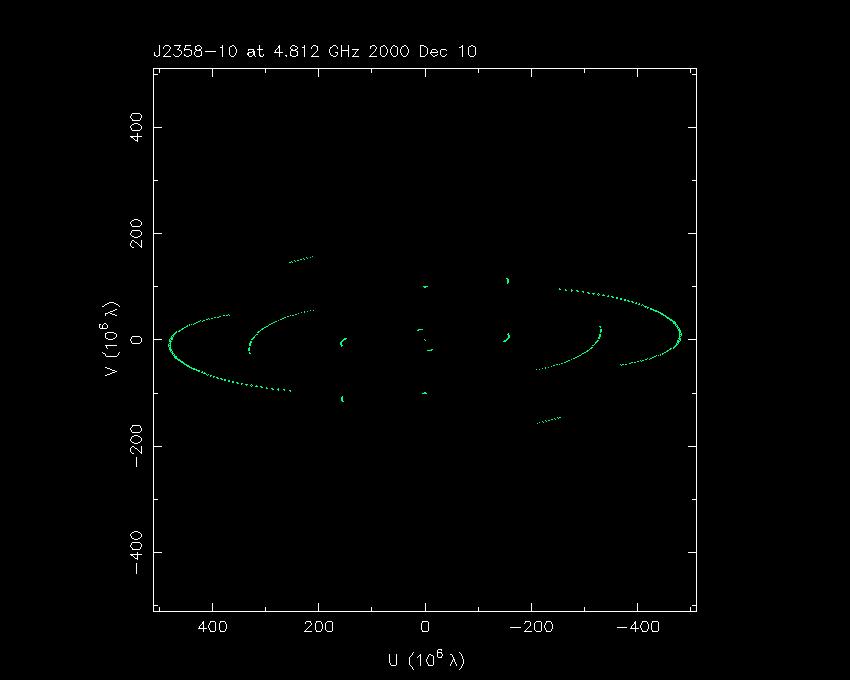

JPEG 1, 2, 3		 (u,v) Coverage
PS (31 kb)
JPEG (27 kb)
Closure Phase vs Time
PS (383 kb)
JPEG 1, 2		 Clean Image
PS (30 kb)
JPEG (50 kb)
Modelfit

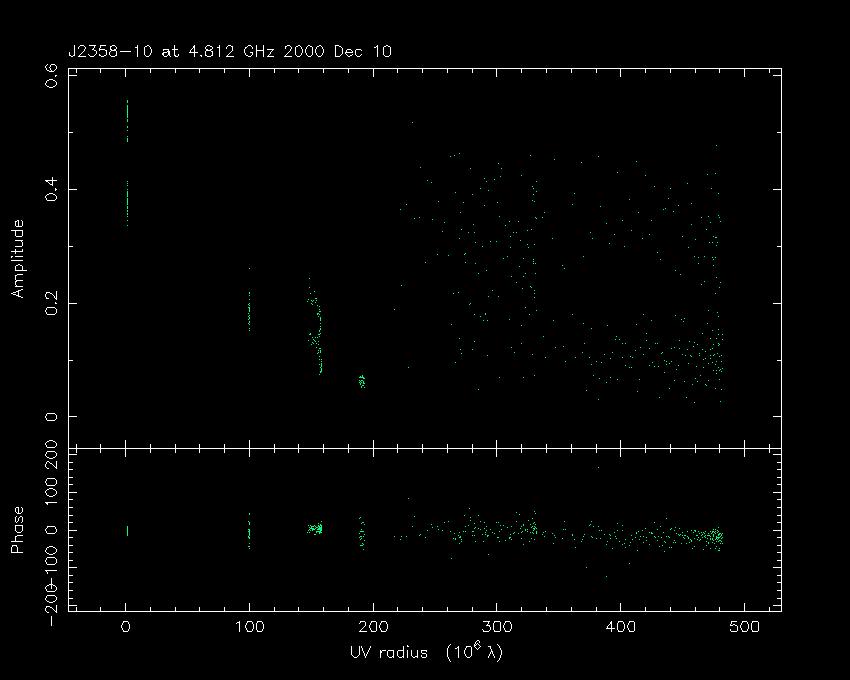

Ampl, Phase vs (u,v) Distance
PS (28 kb)
JPEG (44 kb)
 Ampl, Phase vs Time
PS (233 kb)

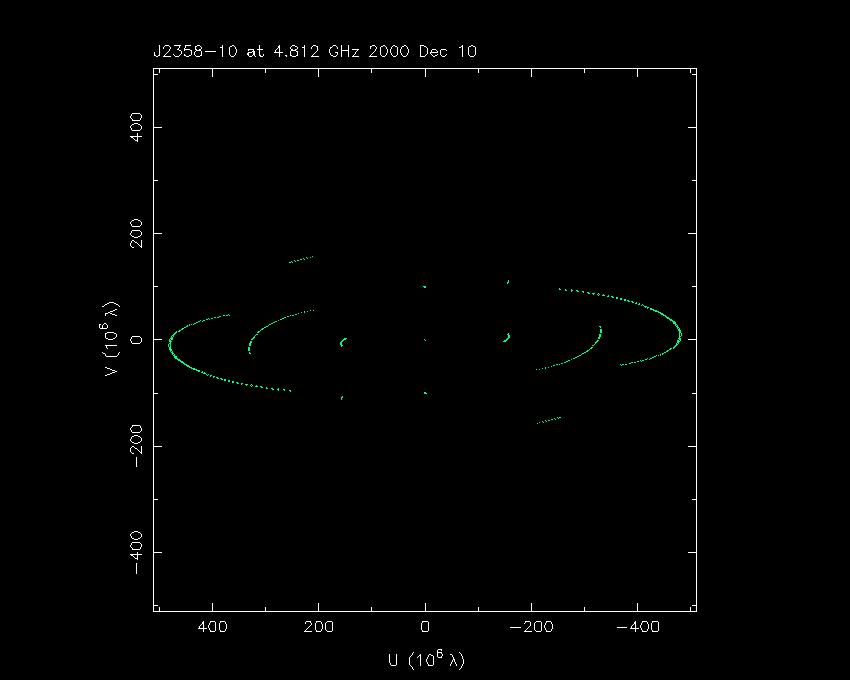

JPEG 1, 2, 3		 (u,v) Coverage
PS (24 kb)
JPEG (27 kb)
Closure Phase vs Time
PS (371 kb)
JPEG 1, 2		 Image with model components
PS (825 bytes)
JPEG (0 bytes)

More details on the Images and Modelfits are found in this page.

Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
0.0585032 0.189571 -16.8622 0.00000 1.00000 0.00000 0.0000
0.307514 0.370494 105.446 1.21792 1.00000 180.000 0.0101
0.0588301 0.337379 -179.737 0.00000 1.00000 0.00000 0.0000
0.0255124 0.364502 3.43884 0.00000 1.00000 0.00000 0.0000
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.
