VS10a Results
Submitted checklist.txt and checklist.tex is also available		   [Summary | AIPS | Difmap ]
Analyst: Zhi-Qiang Shen
Date Prepared: 26-10-1999


Summary

Observation code : VS10a    AIPS Version : 15OCT98
Date of Observation : 1999/8    Difmap Version : 2.3c
Source Name : J0842+18    vsop_difmap used : Yes
Calibration Source(s) : 0808+019
Ground telescopes : Hobart, Mop, Seshan25  Model Fitted to data : Yes
Tracking Station(s) : TZ    Image made : Yes
Correlator : Penticton


Abstract
No space fringes were found though good strong fringes were detected to all 3 GRTs and space baselines sometime were shorter than ground ones.

Imaging and modelfitting were made to both survey source (J0842+18) and calibrator (0808+019) using ground VLBI data.

A re-scheduling is recommended!
Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
0.406592 0.190921 -123.773 0.713646 1.00000 0.00000 0.0390
0.123993 11.0971 25.8975 0.742158 1.00000 0.00000 0.0110
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.


AIPS Data Reduction Notes

- None -

AIPS Input Files
ANTAB.TXT Comments
- None -

AIPS Output Files
PRTAN.LIS
LISTR.LIS
DTSUM_0.LIS
DTSUM_1.LIS
UVPLT_UV.PS
UVPLT_UVD.PS
UVPLT_UVPA.PS
SN_APCAL_AMP_1.PS		 SN_APCAL_AMP_2.PS
SN_CALIB_DEL_1.PS
SN_CALIB_DEL_2.PS
SN_CALIB_RAT_1.PS
SN_CALIB_RAT_2.PS
SN_CALIB_SNR_1.PS
SN_CALIB_SNR_2.PS
SN_CALIB_PHA_1.PS		 SN_CALIB_PHA_2.PS
POSSM01_AP_1.PS
POSSM01_AP_2.PS
VPLOT_AP_1.PS
VPLOT_AP_2.PS


Difmap Data Reduction Notes
Phase selfcal applied? No
Global amplitude selfcal (gscal) applied? No
Amplitude selfcal on non-global timescales used? No
Modelfit made and saved? Yes
Image Made and saved? Yes
Comments on Difmap processing

Ampl, Phase vs (u,v) Distance
PS (44 kb)
GIF (6 kb)

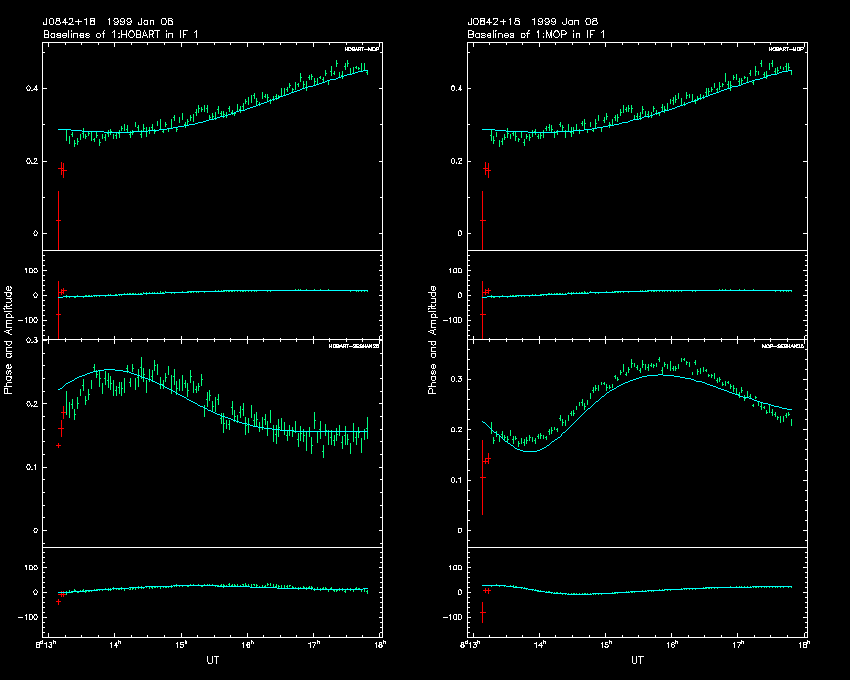

 Ampl, Phase vs Time
PS (101 kb)

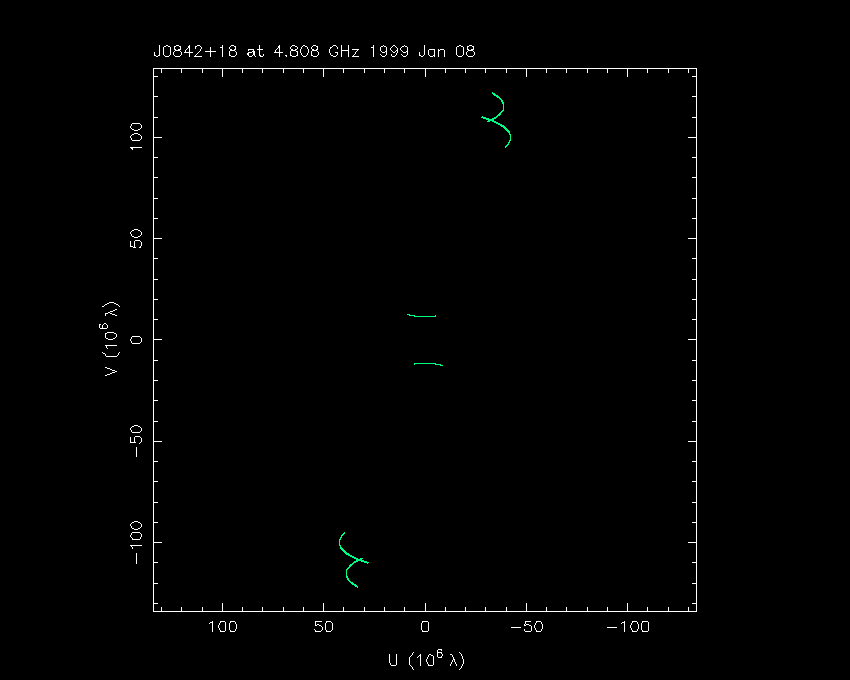

GIF 1, 2		 (u,v) Coverage
PS (26 kb)
GIF (4 kb)
Closure Phase vs Time
PS (50 kb)

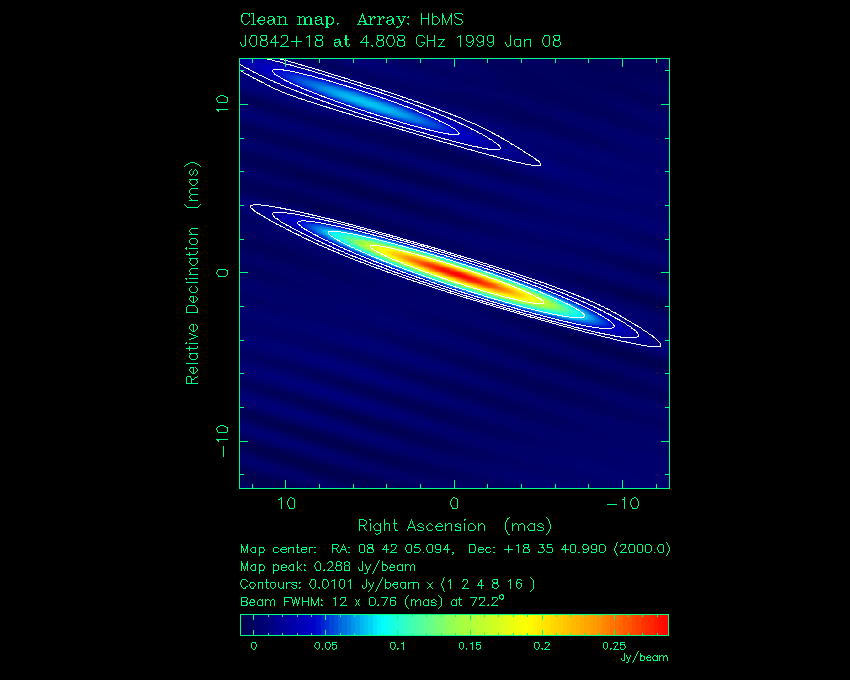

GIF 1		 Clean Image
PS (81 kb)
GIF (52 kb)
Modelfit

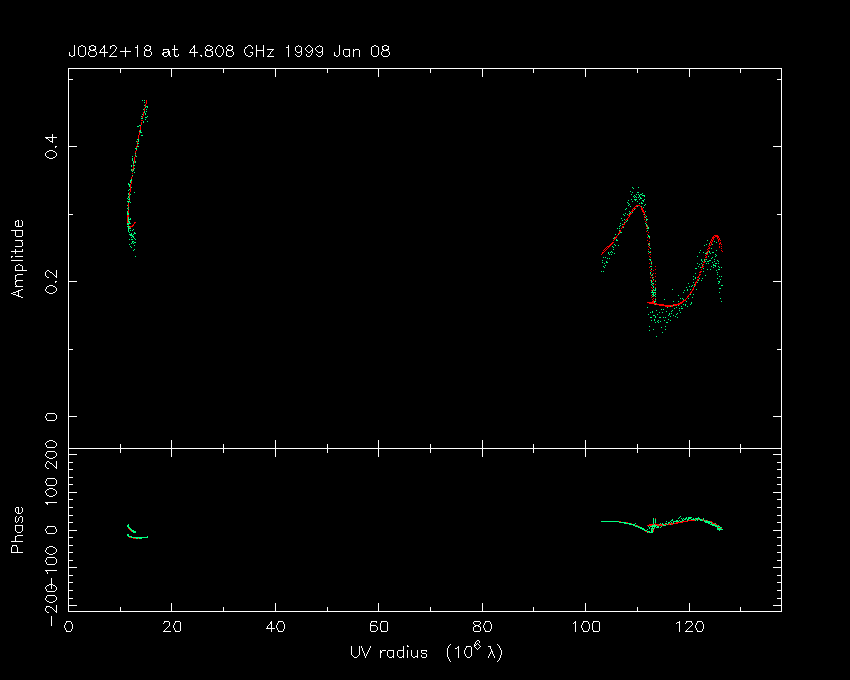

Ampl, Phase vs (u,v) Distance
PS (44 kb)
GIF (6 kb)

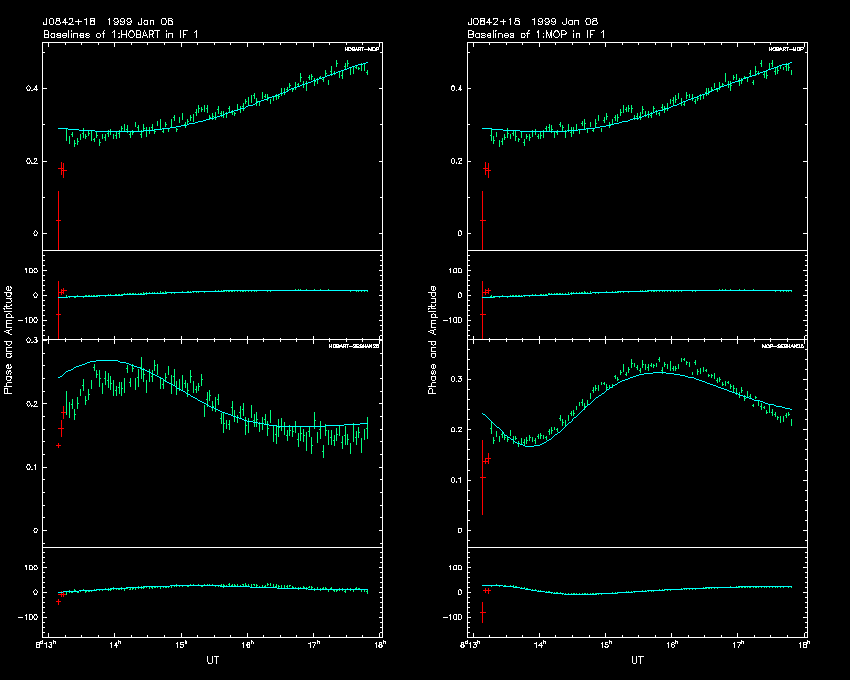

 Ampl, Phase vs Time
PS (101 kb)
GIF 1, 2		 (u,v) Coverage
PS (26 kb)
GIF (4 kb)

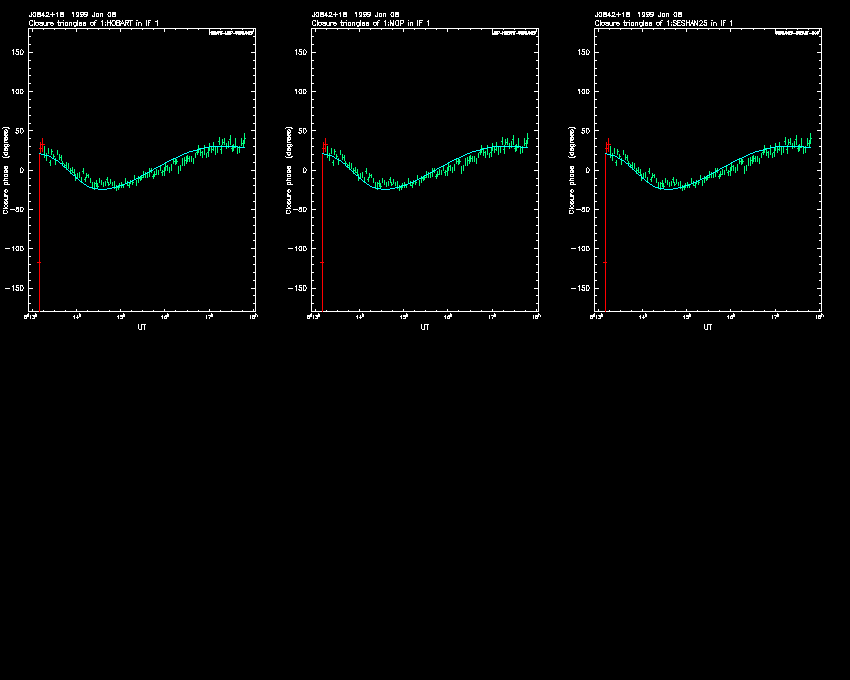

Closure Phase vs Time
PS (50 kb)

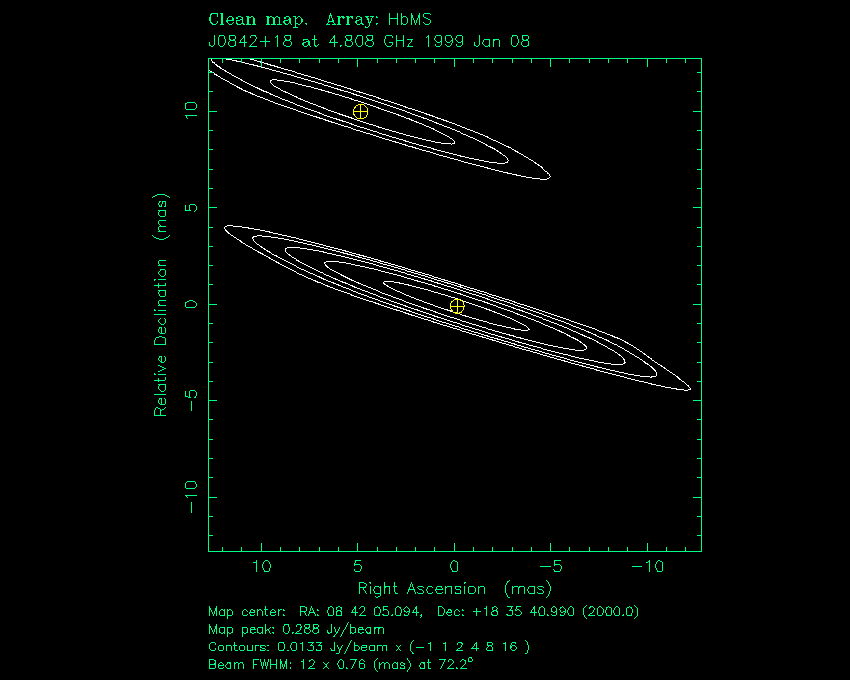

GIF 1		 Image with model components
PS (79 kb)
GIF (9 kb)

More details on the Images and Modelfits are found in this page.

Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
0.406592 0.190921 -123.773 0.713646 1.00000 0.00000 0.0390
0.123993 11.0971 25.8975 0.742158 1.00000 0.00000 0.0110
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.
