VS13C Results
Submitted checklist.txt and checklist.tex is also available		   [Summary | AIPS | Difmap ]
Analyst: Richard Dodson
Date Prepared: 5-3-2003


Summary

Observation code : VS13C    AIPS Version : 31DEC00
Date of Observation : 2002/291    Difmap Version : 2.4a
Source Name : J1949-19    vsop_difmap used : No
Calibration Source(s) : j1924-29
Ground telescopes : MP HO KA SH  Model Fitted to data : Yes
Tracking Station(s) : UZ    Image made : No
Correlator : Mitaka


Abstract
Delays imply that the position is wrong. I believe the position used is not that in VSOP survey & prelaunch papers. No Halca.
Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
0.207204 0.000487438 44.4801 0.00000 1.00000 0.00000 0.0000
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.


AIPS Data Reduction Notes

Task
Adverbs
CL
in
SN
in
CL
out
SN
out
Comments
FITLD clint = 0.25
digicor = -1
delcorr = -1





INDXR cparm = 0, 0, 0.25;


1


ANTAB infile='antab.txt'





APCAL



1

ACCOR solint 5



2

CLCAL refant=3;
1
1
2

 Amplitude calibration solutions applied. Mop as ref
TACOP
2

3


CLCOR opco 'sbdl';ante 2;clcor
    375,375,0;ante 4;clcor
   130,130,0
3



 Same sign as DQA, if 2nd antenna. Opposite to FRING value
FRING docal 1;dparm 2,200,200,0.5,0;aparm(7)=0.5;solint
   5
3


2
 flagver -1 again. Why is this?
SNSMO bparm 1/12;cparm 0 0 0.5
   0.5 0 0 0 10 0

2

3,4
 smooth out the bad ones
SNEDT

4

5
 remove one bad solution (lost coherence?) from Shanghai
CLCAL refant=3;
3
4
4


SPLIT aparm(1)=2 0;
4



 Av within IF: Cal source for position offset.
FITTP




 Data written out for analysis in Difmap

AIPS Input Files
ANTAB.TXT Comments
- None -

AIPS Output Files
PRTAN.LIS
DTSUM_0.LIS
DTSUM_1.LIS
LISTR.LIS
POSSM.PS
SN_ACCOR_AMP_1.PS
SN_ACCOR_AMP_2.PS
SN_APCAL_AMP_1.PS
SN_APCAL_AMP_2.PS
SN_CALIB_DEL_1.PS		 SN_CALIB_DEL_2.PS
SN_CALIB_PHA_1.PS
SN_CALIB_PHA_2.PS
SN_CALIB_RAT_1.PS
SN_CALIB_RAT_2.PS
SN_CALIB_SNR_1.PS
SN_CALIB_SNR_2.PS
SN_FRING01_DEL_1.PS
SN_FRING01_DEL_2.PS
SN_FRING01_RAT_1.PS		 SN_FRING01_RAT_2.PS
SN_FRING01_SNR_1.PS
SN_FRING01_SNR_2.PS
UVPLT_UV.PS
UVPLT_UVD.PS
UVPLT_UVPA.PS
VPLOT.PS


Difmap Data Reduction Notes
Phase selfcal applied? Yes
Global amplitude selfcal (gscal) applied? No
Amplitude selfcal on non-global timescales used? No
Modelfit made and saved? Yes
Image Made and saved? No
Comments on Difmap processing
GRT only.

Modelfit

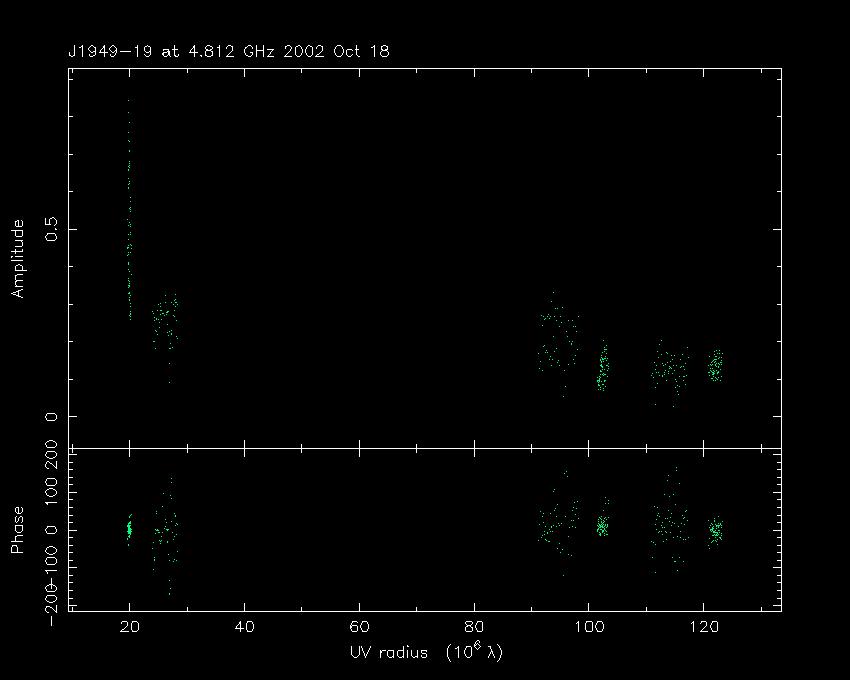

Ampl, Phase vs (u,v) Distance
PS (22 kb)
JPEG (37 kb)
 Ampl, Phase vs Time
PS (127 kb)

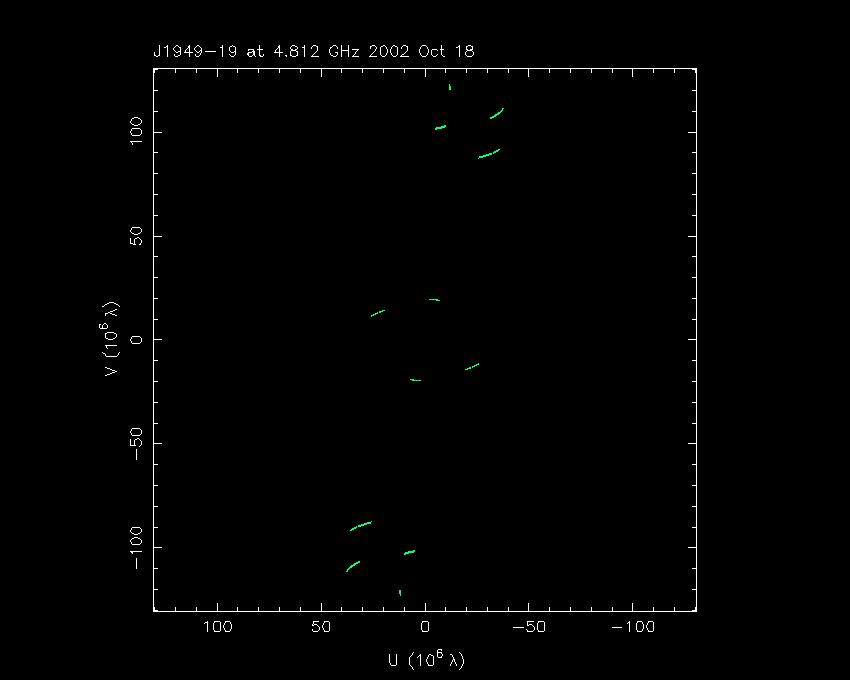

JPEG 1, 2		 (u,v) Coverage
PS (20 kb)
JPEG (26 kb)

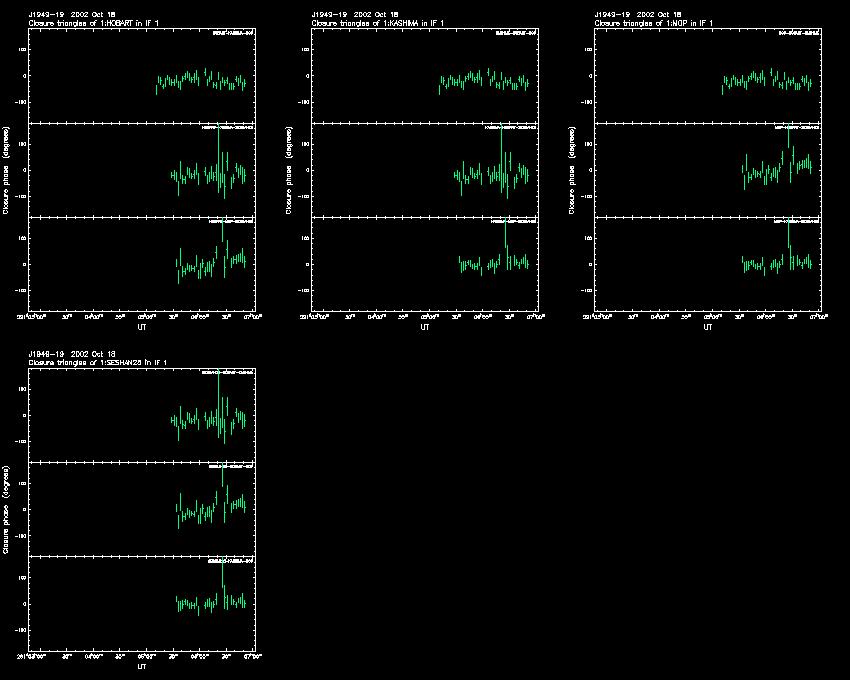

Closure Phase vs Time
PS (104 kb)
JPEG 1		 Image with model components
PS (825 bytes)

More details on the Images and Modelfits are found in this page.

Model
Flux (Jy)
Radius (mas)
Theta (deg)
Major (mas)
Axial ratio
Phi (deg)
TB (10^12 K)
0.207204 0.000487438 44.4801 0.00000 1.00000 0.00000 0.0000
(*) Quoted Brightness temperatures assume Gaussian components and are in the local (z=0) frame.
